Event Gallery can keep your images at Amazon S3 or at any storage provider which offers the S3 API, for example Cloudflare R2, Backblaze B2, Wasabi or Hetzner Object Storage. See the section called “Setting up your storage provider” for the setup of each of them.

Basically, S3 files behave like local files. There is just one important difference. While thumbnails for local files are generated on demand, we need to calculate the thumbnails for images stored in an S3 bucket in advance. For this, we use two buckets. One bucket contains the original files. The folder and file structure is the same as for local files. No nesting is supported. Create a folder in the bucket and upload your images into it. Example: event1/myimage.jpg. The second bucket is used to store the generated thumbnails. Browsers need access to this bucket in order to load the images. You just need to create the bucket; everything else is handled by Event Gallery. Make sure you’re using the same region for both buckets.

Once you uploaded your images and created an S3 account for your buckets, you need to let the database know about your new files. Use the Sync Database button and sync your folders to start the sync process. Once the new files appear, hit the Start Sync button of step 3, Synchronize Images, to read in the necessary data. Check the Sync Database process documentation for information on how to generate thumbnails. You can upload files using Event Gallery, too.

S3 accounts

An S3 account tells Event Gallery where your images are stored and how to sign in. You find the accounts under Event Gallery → Accounts - S3 Storage. You can have as many accounts as you like, for example one per customer or one per storage provider, at Amazon S3 or at any service which offers the S3 API.

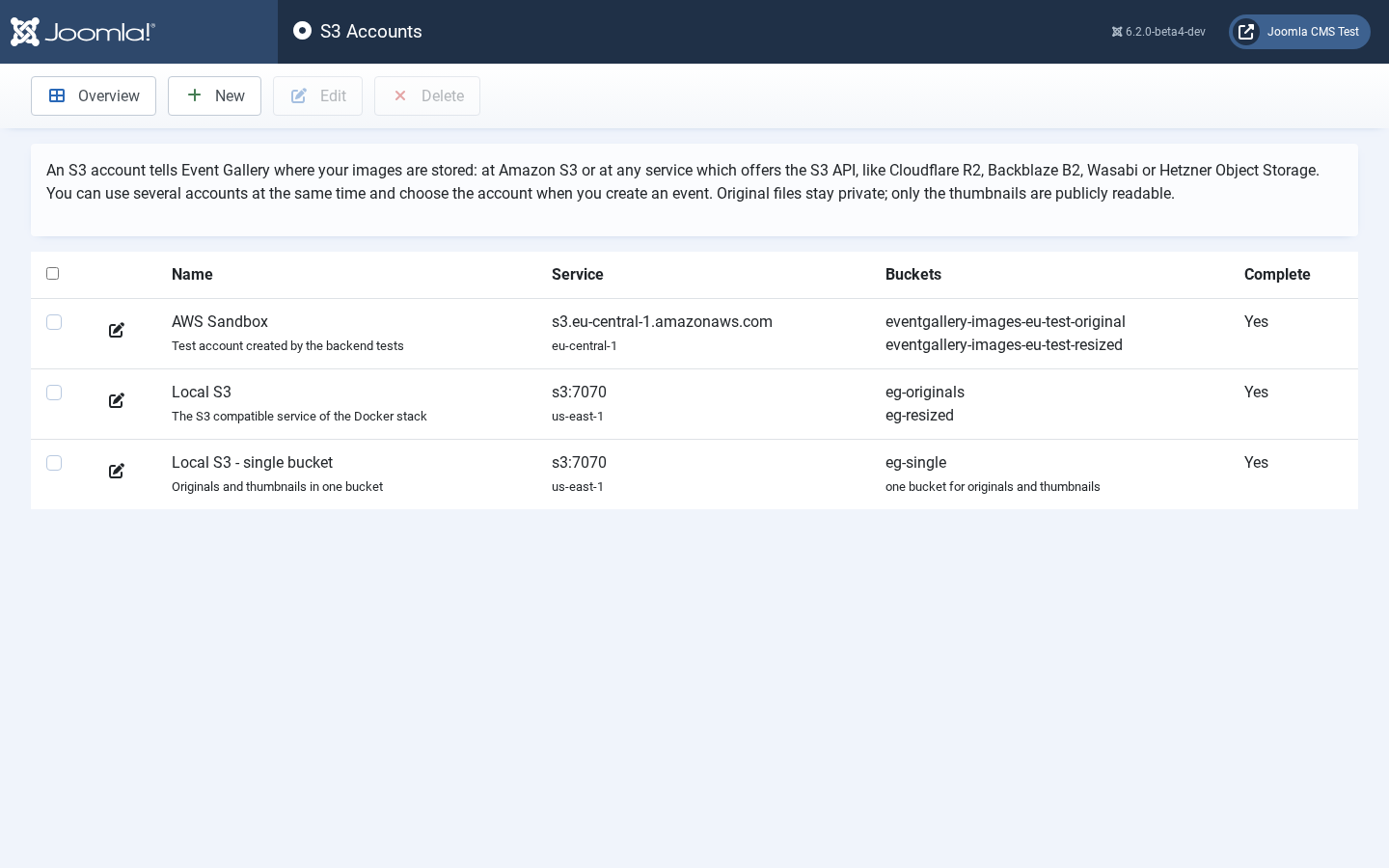

Figure 3.56. The list of S3 accounts

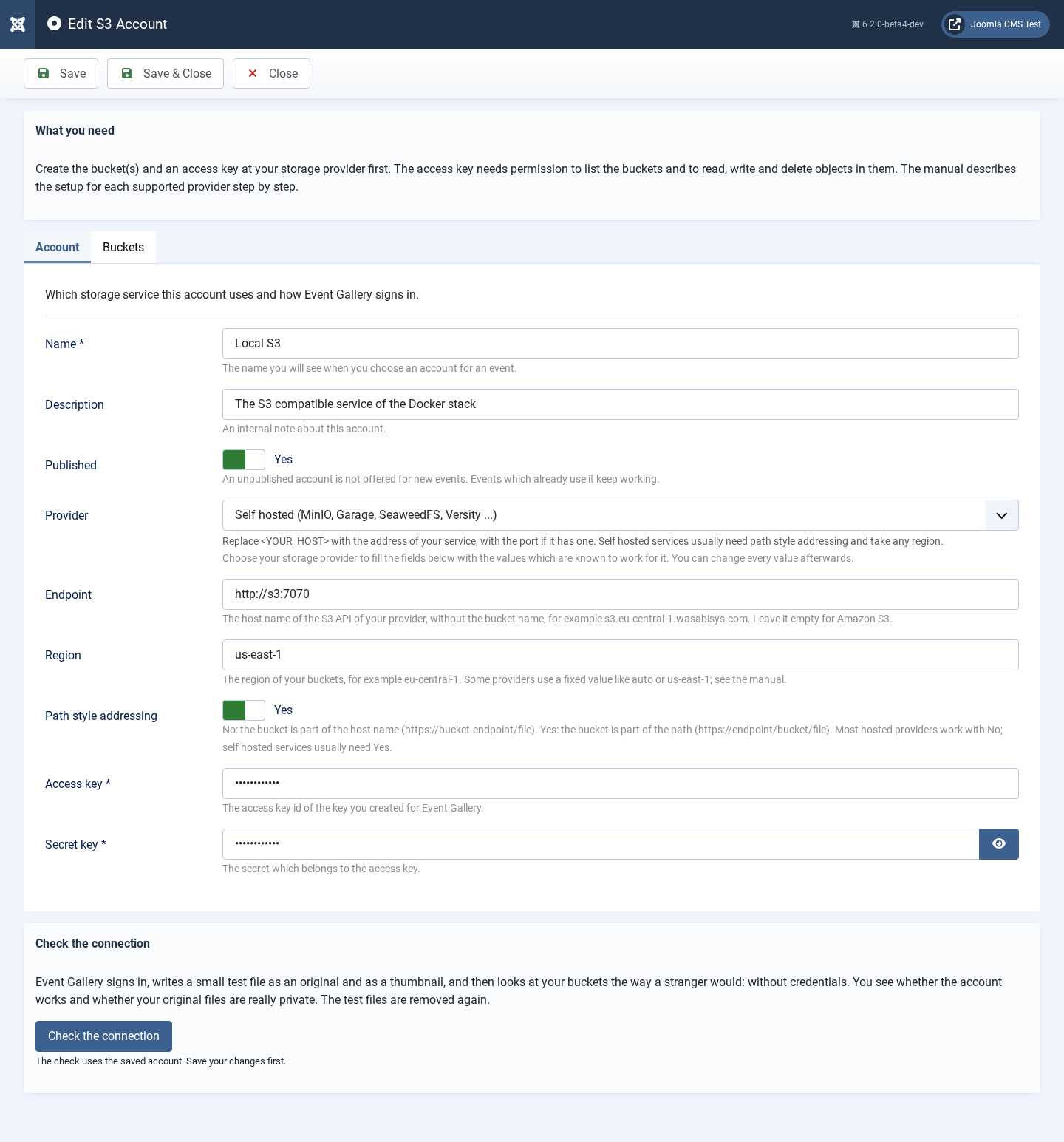

Figure 3.57. An S3 account

Check the connection

Once an account is saved, its form offers the button Check the connection. Event Gallery signs in, writes a small test file as an original and as a thumbnail, and then looks at your buckets the way a stranger would: without credentials. The test files are removed again.

The result tells you two things. First, whether the account works: signing in, writing, deleting, and whether your visitors can load a thumbnail. Second, and more important, whether your original files are really private. A bucket which is public by mistake works perfectly well, so you would never notice. If the check reports Your original files are public!, remove the public access from that bucket at your storage provider and run the check again.

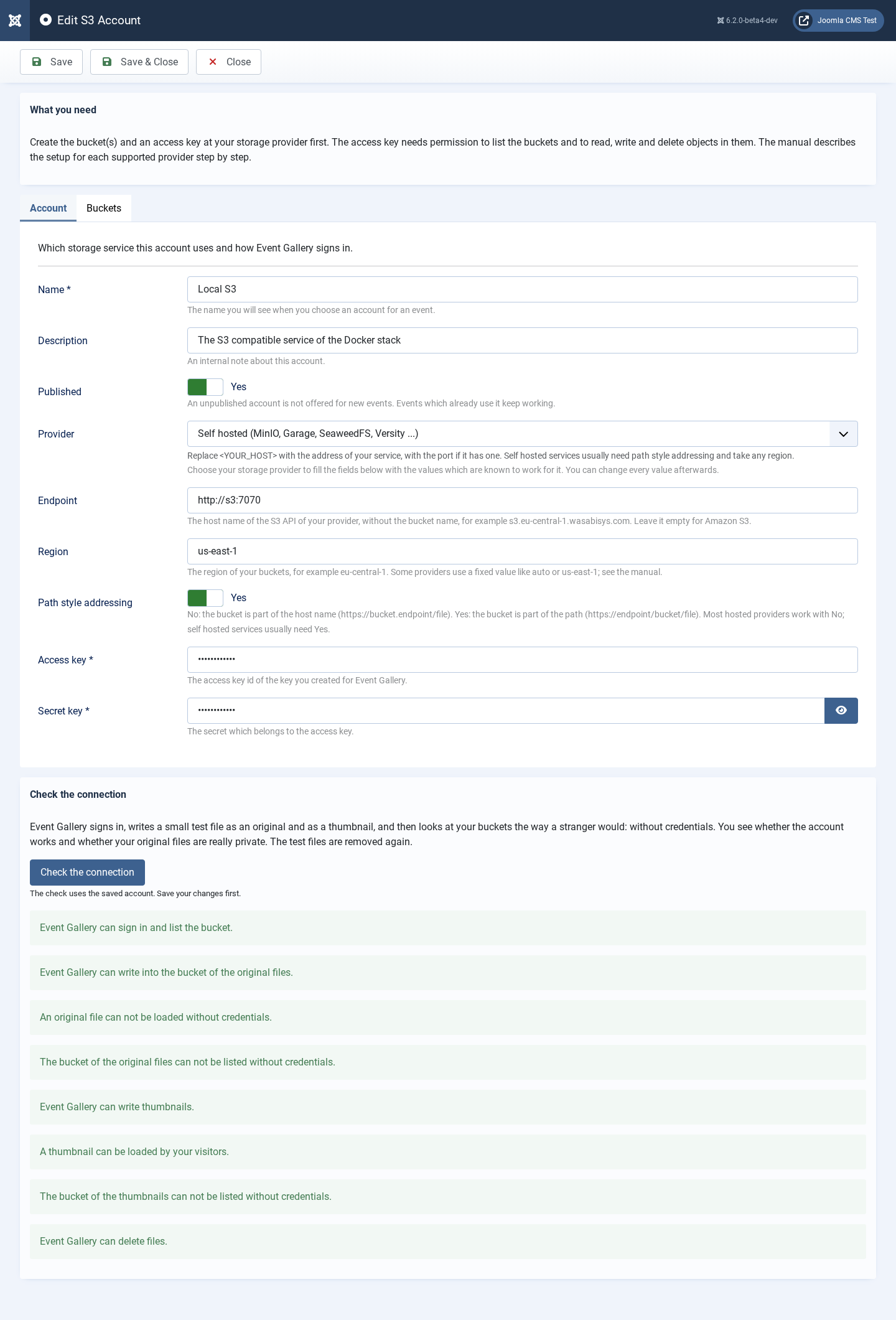

Figure 3.58. An account which passed the check

Run the check whenever you changed something at your storage provider.

One bucket instead of two

Two buckets are the default, because they keep private and public files apart in the most obvious way. If you prefer one bucket, leave Bucket for thumbnails empty. Event Gallery then stores the original files below originals/ and everything your visitors load below resized/:

originals/event1/myimage.jpg
resized/event1/s1600/myimage.jpg

Upload your images to originals/<folder>/. The bucket has to stay private as a whole; only the prefix resized/ may be publicly readable. Set Make thumbnails public by ACL to No and give the bucket a policy like this one, with your bucket name:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": "*",
      "Action": "s3:GetObject",
      "Resource": "arn:aws:s3:::my-bucket/resized/*"
    }
  ]
}

Decide before you upload: switching an account from two buckets to one, or back, does not move any files.

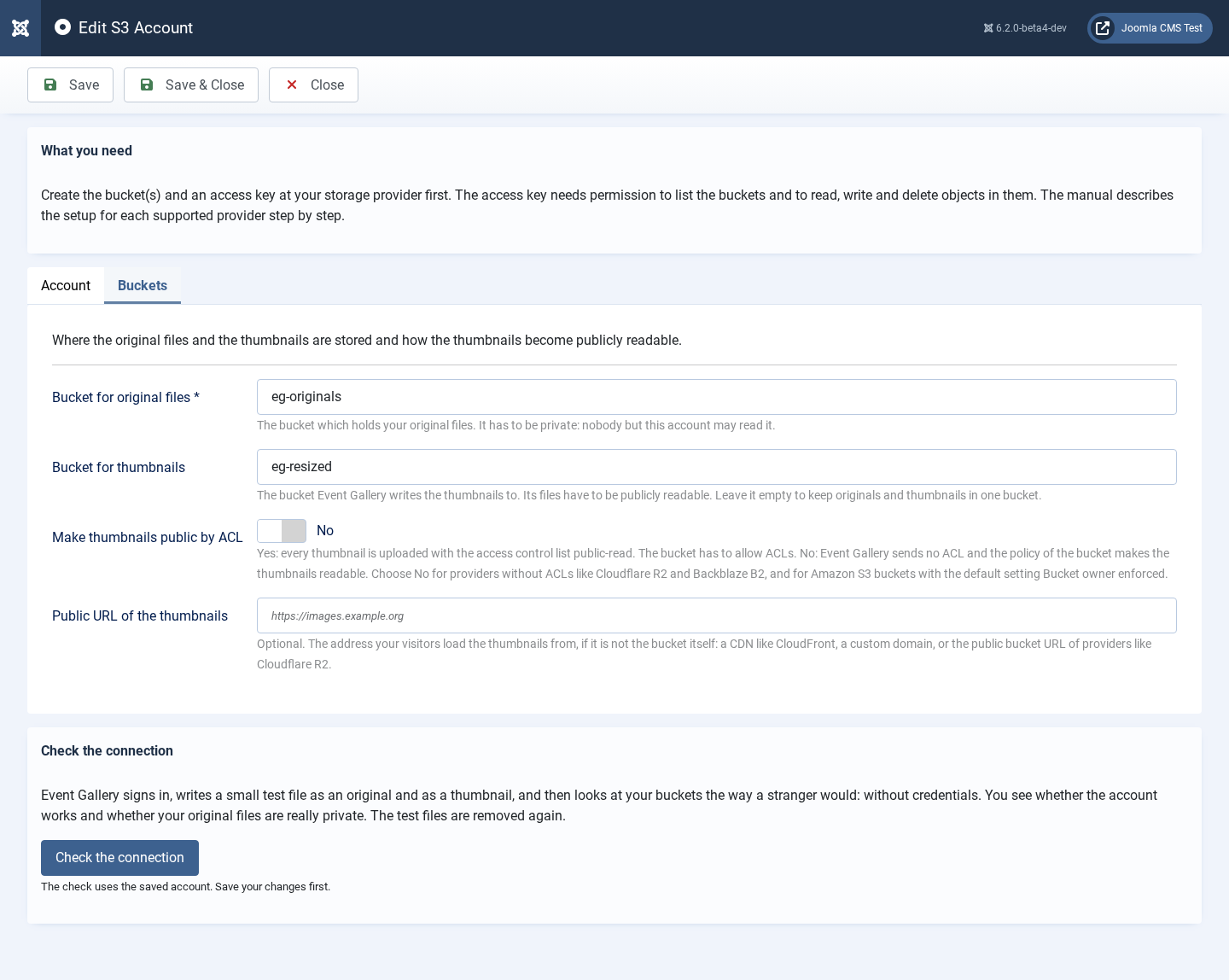

Figure 3.59. The buckets of an account

When you create an event, choose S3 Storage as the image source, pick the account and enter the folder name. If the sync finds a new folder in a bucket, it creates the event for the published account which has that folder; if several have it, for the one which was created first. A folder name can only be used once across all accounts, because it identifies the event.

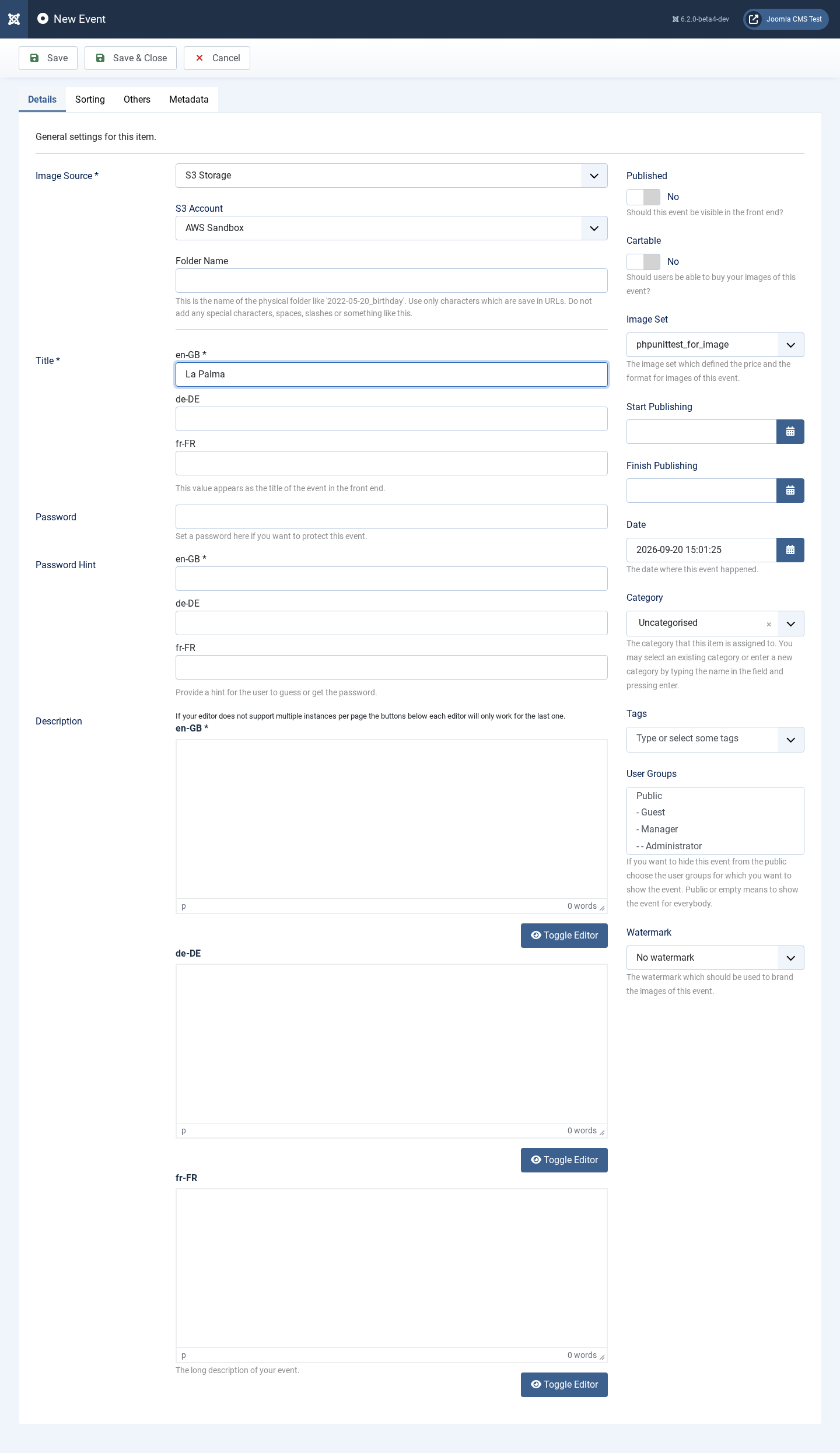

Figure 3.60. A new event with the image source S3 Storage

An account which events still use can not be deleted. Assign another account to those events first; deleting an account never touches the files in the buckets.

Your original files never leave the private bucket through a link. Event Gallery downloads an original with the credentials of the account and hands it out itself, after it checked that the visitor may have it.

If you update from an older version, Event Gallery creates an account named Amazon S3 from the former options of the component and assigns it to all existing S3 events. It keeps Make thumbnails public by ACL switched on, because that is how your buckets were set up.

Deleting images

When you delete images in the image list of an Amazon S3 event with Delete images, Event Gallery deletes them in Amazon S3 as well: the original file in the bucket of the original images, and all thumbnails of it in the thumbnail bucket. For a video, the copy which Event Gallery keeps in the thumbnail bucket for playback is deleted, too.

Deleting a whole event is different. It removes the event and its images from Event Gallery, but leaves the files in both buckets untouched, on purpose. If you want to get rid of the files, delete the folder in both buckets in the AWS console. If you create an event with the same folder name again, a sync finds the files and imports them again.

Always keep in mind that reading from and writing to an Amazon S3 bucket is not free. You have to pay for each request. So don’t perform a sync or a thumbnail creation if it is not necessary.

	Note
	If you encounter any errors, increase your error reporting level. The thumbnail generator will output error messages which might help with invalid Amazon S3 credentials.

Technical Details

The table #__eventgallery_file has two new fields: s3_etag and s3_etag_thumbnails. The field s3_etag contains the S3 hash of the original file. It is used to detect image changes. The field s3_etag_thumbnails contains a JSON object. It stores the thumbnail sizes and the hash values of each thumbnail. While creating the thumbnails this data is used to detect thumbnail changes. Once a change of the original file is detected, the field s3_etag_thumbnails is cleared. The next thumbnail creation run will find those thumbnails as missing and will recreate them. Make sure you uncheck the Refresh thumbnail hashes option. Otherwise, the s3_etag_thumbnails field will be populated with the hash values of existing thumbnails.

Figure 3.61. Thumbnail Creator

Setting up your storage provider

Event Gallery works with Amazon S3 and with every service which offers the S3 API. Whatever provider you choose, the setup is always the same four steps:

Bucket names should consist of lower case letters, digits and hyphens only. Avoid dots.

	Note
	The values below are taken from the documentation of the providers at the time of writing. Providers change their offers. If something does not match what you see at your provider, follow your provider and let the connection check be the judge. Event Gallery itself is tested against Amazon S3 and against a self hosted S3 service.

Providers with bucket policies

This is the way for Amazon S3, Wasabi, Hetzner, IONOS, Scaleway, OVHcloud and most self hosted services. Leave Make thumbnails public by ACL at No and give the thumbnail bucket this policy, with the name of your bucket. It allows everybody to read a file and nobody to list the bucket:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "PublicReadThumbnails",
      "Effect": "Allow",
      "Principal": "*",
      "Action": "s3:GetObject",
      "Resource": "arn:aws:s3:::my-thumbnail-bucket/*"
    }
  ]
}

Most providers have a field for the bucket policy in their web console. If yours has none, any S3 tool can set it, for example the AWS command line:

aws s3api put-bucket-policy --endpoint-url https://<endpoint> --bucket my-thumbnail-bucket --policy file://policy.json

The bucket of the originals gets no policy. If you use one bucket for everything, the resource of the policy is arn:aws:s3:::my-bucket/resized/*.

Providers which publish files by ACL

DigitalOcean Spaces, and Amazon S3 buckets which were set up for an older version of Event Gallery, publish single files by an access control list. Set Make thumbnails public by ACL to Yes. Event Gallery then uploads every thumbnail as public-read and every original as private, and the buckets themselves stay private. The access key needs the permission to set ACLs (s3:PutObjectAcl at Amazon S3).

Cloudflare R2

Backblaze B2

Quick Steps to set up AWS S3 for Event Gallery

	Note
	Sites which were set up with an older version of Event Gallery publish their thumbnails by ACL instead of a bucket policy. That keeps working: the account which the update created has Make thumbnails public by ACL switched on. You can move to a bucket policy at any time by adding the policy and switching the option off.

Access Policy

You need to specify credentials so Event Gallery can access the S3 buckets you created. The following policy allows reading from and writing to those buckets. The line s3:PutObjectAcl is only needed if the account makes thumbnails public by ACL; you can remove it otherwise. You just need to change the name of those buckets to the ones you created.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket"
            ],
            "Resource": [
                "arn:aws:s3:::eventgallery-images-test-original",
                "arn:aws:s3:::eventgallery-images-test-resized"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:PutObject",
                "s3:PutObjectAcl",
                "s3:GetObject",
                "s3:DeleteObject"
            ],
            "Resource": [
                "arn:aws:s3:::eventgallery-images-test-original/*",
                "arn:aws:s3:::eventgallery-images-test-resized/*"
            ]
        }
    ]
}

Extended steps to set up Event Gallery for AWS S3

The screenshots show the setup with ACLs, which older versions of Event Gallery required. It still works. If you publish the thumbnails with a bucket policy instead, skip the step Allow ACLs for both buckets and add the bucket policy to the thumbnail bucket.

Log into the AWS console and switch to the S3 overview page. There, you need to create two new buckets.

Figure 3.62. Create the bucket for the original files

Figure 3.63. Create the bucket for the calculated thumbnails

Figure 3.64. Two new buckets are created

Once you have the two buckets, you need to change the permissions on the thumbnail/resized bucket. It needs to be publicly accessible.

Allow ACLs for both buckets.  By default, items in this bucket are not accessible. When Event Gallery creates thumbnails or uploads files, it sets the ACL to make the files/thumbnails public. The buckets need to support this. Allowing the usage of an ACL helps here.

Figure 3.65. Change bucket permission for the thumbnail bucket

Figure 3.66. Allow public access to the thumbnails bucket

Figure 3.67. Confirm permission change

The buckets are ready. To upload images and calculate thumbnails, you need to create a new user. Don’t use your AWS root credentials! For every Event Gallery installation, I recommend creating a new IAM user. This user has access only to the S3 buckets and to nothing else. The needed permissions are granted by an access policy. We will create both in the next steps.

Figure 3.68. Create a new IAM user

Figure 3.69. Allow programmatic access

Figure 3.70. Create a new access policy

Figure 3.71. Copy and modify the access policy JSON from above

Figure 3.72. Add a name and description for the new policy

Figure 3.73. Assign the policy to the user

Figure 3.74. Copy the access credentials for the user

Once you have the access credentials, bucket names and the bucket region, you can configure Event Gallery and start using AWS S3 there.
